DAP Review

iBasso DX150 with AMP6, AMP7, and AMP8 modules

GUI & Lurker’s fw.

I usually go into extra details describing the user interface and all the features/settings under the main audio playback app. In case of DX150 which runs on Android 6.0 and uses Mango audio app as its default audio player, it makes no sense to go over everything again since it’s identical to DX200. Thus, please refer to GUI section of my DX200 review. The only additional option in DX150 is Sound Styles in Android Settings menu which I’m going to talk about in Sound Analysis section. But the main difference here is that DX200 comes with Android (Mango app) and Mango native modes, while DX150 has only Android (Mango app) mode. And even that’s not a showstopper since the latest Lurker’s ROM for DX150 adds it.

I already mentioned Lurker’s ROM for iBasso DAPs many times, and there is a good reason why I think it’s a must have upgrade for DX150 and DX200. By default, these Android DAPs don’t come with a Google Play store, meaning to install the apps you need to find corresponding apk files and side-load it manually. Lurker’s ROM, which is FREE, gives you access to Google Play, along with additional optimizations and other goodies.

To find out more about it, visit his page at: https://github.com/Lurker00 with a direct links to the latest DX150 fw here and DX200 fw here. He is usually very good with updates, and his firmware becomes available the same or the next day after iBasso releases their own official update.

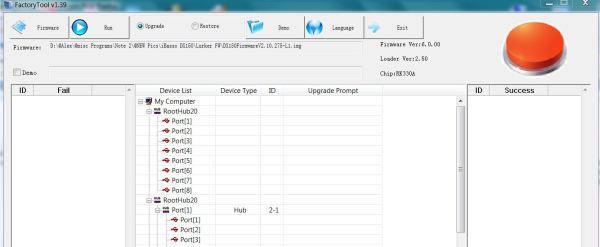

But before you start with Lurker’s custom ROM, please visit the official link from iBasso to download their Factory Tool which includes in a zip file a very detailed instructions how to install drivers and use batch tool to update the fw manually (instructions for DX200 are the same for DX150). You don’t need this tool to install regular iBasso fw updates, those are usually downloaded, copied, and installed from within DX150/200 DAPs. But to install Lurker’s ROM, you will need this batch tool for a manual ROM flashing. It’s a very simple procedure, and included instructions are easy to follow. Plus, once you install the driver, after that you just run the tool, load image file, and quickly flash the DAP. Once it’s done (get confirmation within a tool), disconnect the DAP, reboot it, and the update starts automatically. Plus, you don’t have to worry about your songs on internal and external storage, they will not be erased. And even if you do need to run Factory reset (recommended after FW updates), you can select option not to erase internal storage media files.

ibasso_dx150-53

Sound Analysis.

This is usually the shortest section of my DAP reviews since Pair Up and Comparison sections are where you will find more details to get a better feel for the sound of a DAP in a relative comparison. The sound analysis of a DAP is based on the description of how you hear it through various headphones, so you are describing the sound of the synergy between headphones and the source.

I went through many IEMs and full-size headphones to find a common sound-performance denominator. In a summary, I hear DX150 w/stock AMP6 to have a neutral sound signature with a warmish natural analog tonality. That natural tonality with good retrieval of details especially shines through in mids when listening to vocals. Another thing that stood out was an excellent low-end punch. The soundstage expands wide and it scales up going from 3.5mm SE to 2.5mm BAL outputs (AMP6). Furthermore, I find DX150 to have a very good expansion of dynamics as well as layering and separation of the sounds which also scales up going to AMP7 and AMP8.

Based on the stock AMP6, when going from 3.5mm to 2.5mm ports, balanced output has noticeably more power (better efficiency with 12 less volume clicks), a little wider soundstage, and a slight improvement in dynamic range, while the tonality is nearly the same.

Also, DX150 offers a Sound Style mode available in Settings menu under Sound & Notification, where you have a choice between Standard and Full Sound modes. After going back’n’forth, I found Full mode to have a slightly wider soundstage and a little tighter sound. The effect is subtle and does vary between different headphones, depending on their sound signature and technical performance.

Furthermore, based on Digital filters of AKM DACs, while analyzing the sound with Sharp Roll-off I hear a faster attack and more sparkle, with Slow Roll-off I hear the attack to be a little slower while sparkle is the same, and when switching to Super Slow Roll off I hear the slower attack and less air/sparkle in comparison to other filters. The other two filters were Short Delay with either Slow or Sharp roll-off which I hear the same as corresponding filters with and without short delay.

ibasso_dx150-33

Page 3: AMP6 vs AMP3, AMP5, AMP7, and AMP8.

Page 4: Comparison, and Pair up.

Page 5: External wired/wireless connections, and Conclusion.

Pages: Page 1, Page 2, Page 3, Page 4, Page 5
