iBasso DX150 with AMP6, AMP7, and AMP8 modules

DX150 with AMP6, AMP7, and AMP8 amp modules.

Following is a mini-review of the new AMP7 and AMP8 amp modules, along with a comparison of AMP6 to AMP3, AMP5, AMP7, and AMP8.

Intro.

Having a modular design is both a blessing and a curse. Amplifier section of the DAP is one of the critical parts of the path to a headphone output which can either make it or break it the final sound. It can also change the tonality and the sound characteristics, as well as give you access to a balanced output, boost the power, or lower the noise floor while improving SNR. In a traditional DAP you are stuck with a built-in amp section and specific output ports, and if you want to change it, you must use LO to patch in external amp or digital out to connect to external dac/amp. Modular design is an elegant solution to replace the amp section while keeping the same DAP footprint, without a need for an external stack.

So, you can consider that as a blessing, especially since in case of DX150/200 you can upgrade the sound and performance for $200 per module. A curse is when you have more than a few choices and end up splitting hairs, trying to figure out which one to get. I already covered AMP3/4/5 in my separate review here. Now with introduction of AMP7 and AMP8, you have more choices in addition to stock AMP1 (DX200) and stock AMP6 (DX150). With AMP2, AMP4, and AMP4s no longer available, you are down to AMP3, AMP5, AMP7, and AMP8 as your optional amps to consider for upgrade. It’s still a lot of choices, but you need to consider your headphone termination, 3.5mm SE, 2.5mm BAL, or 4.4mm BAL, and if you do or don’t require LO, because some of these amps have big internal caps and not enough room for LO port.

AMP design/spec.

Just as a preface, AMP7 and AMP8 are the latest offerings from iBasso and they implement a new discrete circuit design with both high voltage and high current output. Both amps offer +/-8V high voltage swing which should improve the dynamics of output, and high output current of up to 2700mA to benefit low impedance multi BA/hybrid IEMs. This is an impressive spec, and to achieve this high voltage and current while still maintaining low output impedance, iBasso had to use discrete components, typical of desktop amp design.

As a quick summary of each available amp card:

AMP7 discrete single ended amplifier card

  • 3.5mm SE: 3.2Vrms, S/N 122dB, output impedance 0.3ohm
  • 3.5mm SE HO and LO

AMP8 discrete balanced amplifier card with Pentaconn 4.4mm port

  • 4.4mm BAL: 6.2Vrms, S/N 125dB, output impedance 0.38ohm
  • 4.4mm BAL HO only

AMP3 high voltage swing balanced amp card

  • 2.5mm BAL: 6Vrms, S/N 124dB
  • 2.5mm BAL HO and LO

AMP5 high voltage swing single ended amp card

  • 3.5mm SE: 3.2Vrms, S/N 121dB
  • 3.5mm SE HO and LO

AMP6 (stock DX150 amp)

  • 2.5mm BAL: 4.8Vrms, S/N 118dB
  • 3.5mm SE: 2.4Vrms, S/N 117dB
  • 3.5mm SE HO and LO, 2.5mm BAL HO

AMP1 (stock DX200 amp)

  • 2.5mm BAL: 6Vrms, S/N 125dB
  • 3.5mm SE: 3Vrms, S/N 122dB
  • 3.5mm SE HO and LO, 2.5mm BAL HO

AMP comparison.

Since this is DX150 review, the following comparison will focus on sound changes I hear going from a stock AMP6 to other amp modules. I also included a comparison between AMP7 and AMP8, since I received a lot of questions about it. All my sound impressions were collected using iBasso IT04, 64 Audio U18t, and Beyerdynamic T5p 2nd gen headphones. Due to a difference in output power, I tried to volume match as close as possible in every comparison. Also, please keeping in mind this is how I hear the difference, so it’s my subjective opinion.

AMP6 -> AMP7: the same volume level between SE outputs, wider soundstage (SE of 7 is even a touch wider than BAL of 6), blacker background, a little more transparency and slightly better layering in 7, and 7 is a touch brighter and a little more revealing in comp to 6.

AMP6 -> AMP8: the same volume level between BAL outputs, wider soundstage, more transparency, tighter bass with a bigger impact, a little more treble sparkle, improvement in layering and dynamics, blacker background, the sound has a little more body and more revealing in comparison.

AMP7 -> AMP8: 8 has more power, needs less volume (SE vs BAL outputs), 8 has a little wider soundstage, bass has a little more impact, tonality is very similar but overall sound of 8 is tighter, has blacker background and improved dynamics.

AMP6 -> AMP3: very similar performance and tonality, perhaps 3 having slightly better dynamic range expansion. Actually, with 3 having a lot better S/N spec, I expected a bigger difference but 6 performed very close.

AMP6 -> AMP5: again, despite a difference in S/N spec, the performance is not too far off, especially when comparing 5 to 6 SE, though 5 has a fuller body with a little warmer tonality. The difference is more obvious when comparing 5 to 6 BAL which is a little brighter in comparison to 5 SE.

Bonus comparison.

DX200: AMP4 vs AMP8 – soundstage is nearly identical. Also, mids and treble are very similar, the noticeable difference is in low-end where amp8 bass has a little stronger punch with a deeper extension, giving the sound a little more body, while in overall comparison amp4 has a little better layering of the sounds.

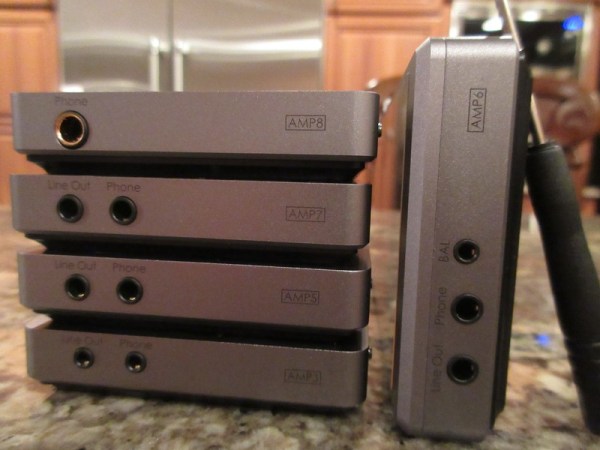

ibasso_dx150-26

Page 4: Comparison, and Pair up.

Page 5: External wired/wireless connections, and Conclusion.
