DAP Review

Dethonray DTR1 Prelude

Comparison.

In these comparisons I was using IE800S IEMs with corresponding 3.5mm, 2.5mm, or 4.4mm cable adaptors (depending on the source), volume matched in every comparison.

DTR1 vs HiFiMAN R2R2k Red (4.4mm) – nearly identical and almost holographic quality soundstage expansion, maybe with Red being just a touch wider, but you need to listen very closely and have a capable pair of monitors to pick up that difference. Tonality is nearly identical as well, very neutral, transparent, a bit more toward the revealing side.  In this particular pair up with IE800s, Red has a little more sub-bass rumble, otherwise the technical performance of layering/separation and dynamics expansions of the sound is very close.  We are comparing a dap with AK4490 chipset to a dual PCM1702 R2R DAC, plus it’s at half price, though you have to keep in mind Red has usb-c port and also USB DAC and Bluetooth DAC functionality.  Btw, physical buttons of DTR1 is a big plus over Red’s touch, though both have a very minimalistic interface.

DTR1 vs Lotoo PAW Gold Touch LPGT (4.4mm) – another surprise with nearly identical holographic soundstage expansion (relative to IE800s pair up).  And tonality is close as well, being neutral, transparent, leaning slightly toward the more revealing side, but still closer to neutral.  Contrary to comparison with Red, here DTR1 has a deeper sub-bass rumble, while Touch keeps it a bit leaner in quantity.  And again, I’m doing A/B with IE800s, and technical performance is very close with a similar layering and separation of sounds, and both having a great dynamics (vertical) expansion.  Aside from sound quality similarity, Touch is a lot more expensive and also has more functionality, thus everything has to be taken into consideration.

DTR1 vs FiiO M11 (4.4mm) – M11 been making some serious waves and in the same price bracket as DTR1, so I’m sure many will be curious about this comparison.  I do hear DTR1 soundstage to be a little wider, while both have a similar depth; and with this difference DTR1 feels a little more holographic to my ears. With tonality, they are relatively close, and with some iems M11 could be a touch brighter.  Also, I hear M11 bass to have a little leaner sub-bass with less rumble.  The bigger difference here is in technical performance where DTR1 sound feels more layered with more expanded dynamics.  M11 is not compressed or congested, just that DTR1 feels like it has more air between layers and better dynamics. Of course, M11 is also more consumer friendly with lots of added features.

DTR1 vs Sony WM1Z (4.4mm) – soundstage expansion here is nearly identical, making pair up with IE800s in both cases closer to holographic.  Tonality has some variation since 1Z has a little more impact in the bass and also more emphasis in treble, making pair up with IE800s more v-shaped while with DTR1 this pair up is more balanced.  Both have a deep sub-bass rumble, but 1Z slams a little harder in mid-bass.  And with treble, 1Z is crunchier while DTR1 sounds more natural.  Technical performance is very similar with a layered dynamic sound.  Of course, WM1Z is more expensive, with more features, and touch screen GUI.  Btw, both feature proprietary charging ports.

DTR1 vs iBasso DX220 (2.5mm) – very similar soundstage expansion, maybe with DTR1 being a touch wider with IE800s, but need to listen very closely to pick up this difference.  Tonality is very close, but I do hear a few little differences (relative to IE800s pair up) where DTR1 has a little stronger mid-bass punch while both have the same sub-bass rumble, and DX220 has a little more sparkle and airiness in treble.  Technically, they are very similar with comparable layering and separation and similar dynamics expansion.  It’s pretty impressive how DTR1 with its AK4490 can keep up with ES9028Pro.  You also need to keep in mind the price difference, though DX220 offers a great value considering its modular design and open Android interface.

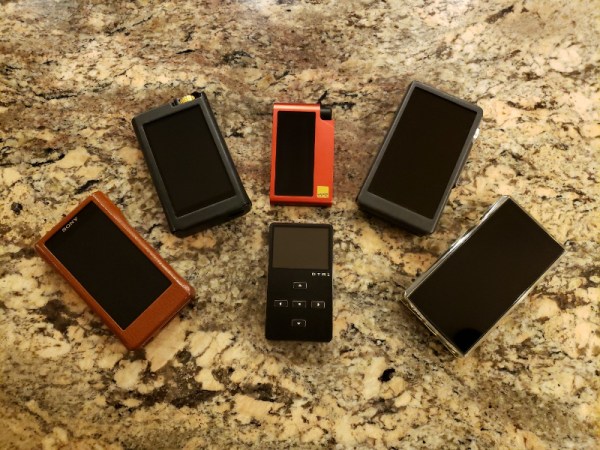

dethonray_dtr1-30

Conclusion.

DTR1 is not a commercial mainstream feature-packed DAP.  Instead, it occupies a space allocated to boutique audio players with a unique design focused on one main thing – audio playback.  This DAP ($550) generated a lot of buzz with people comparing its sound performance to some of the top flagships, as I have in my review as well.  But you also have to be realistic and understand its limitations, something I noticed quite a few people missed based on the questions I continue to receive.

It’s not a jack of all trades that going to replace your android DAP, there is no wi-fi or streaming or Bluetooth, you can’t use it as USB DAC or tap into EQ to adjust the sound, and you might need iEMatch for your low impedance sensitive IEMs.  If these features are at the top of your priority list, perhaps look at DTR1 as a companion to another DAP which going to cover everything else.  But if you are looking for a portable DAP with an optimized pure hi-res audio performance and the power to drive many demanding full-size headphones – DTR1 deserves a serious consideration.

What impressed me the most about this DAP was its design around a single AK4490 chip, an older DAC I heard in so many other DAPs with sub-par sound quality.  Yet, inside of DTR1 it was transformed to perform like I have never heard it before, proving again that it’s not about the component but its implementation.  Now, considering this is Dethonray’s debut release, named as Prelude, I can’t wait to see and to hear what Anson going to come up with next!

Pages: Page 1, Page 2, Page 3, Page 4

42 thoughts on “Dethonray DTR1 Prelude”

  1. Nice review, I’ve been keeping an eye on the head-fi thread and eagerly awaiting your impressions. My wallet is about to get lighter, but thankfully not by too much by today’s hifi standards!

    Like

    Reply

  2. Hi !
    Great review as usual, I ordered the DAP, please let me know which type of cable you are using in you T5P showed.
    Thanks and best regards

    Like

    Reply

    1. That was a Whiplash silver plated copper cable from many years ago. That company no longer in business. T5p 2nd gen actually benefits greatly from pure copper cables.

      Like

      Reply

      1. Exactly, they supply a pure cooper 7N cable very good, but it is NOT silver plated, so the sound might be slightly different

        Like

  3. this player came in about ~10 year too late…. to charge this kind of $$ for a device that only plays audio in 2019….even if it sounds totl, in such an old format, no internal storage, no os… there’s no excuse to it…
    the audiofoolery money making machine keeps on going…

    Like

    Reply

  5. Any chance you can compare to the iBasso DX120? Different price and spec, but similar concept of a bare-bones DAP that prioritizes sound quality.

    Like

    Reply

    1. while a similar concept, totally different technical sound performance and set of features. DX120 is a nice average mid-fi level DAP. DTR1 is in a league of summit-fi flagships, especially when you want to drive demanding headphones or need more current for those planar magnetic drivers. On the other hand, DX120 has regular usb port, touch screen interface, and other options which DTR1 falls short of.

      Like

      Reply

  6. Another question – did you try the DTR1 with any Westone IEMs? I’m particularly interested in how it pairs with the W60s and ES60s. Thanks!

    Like

    Reply

    1. Just tested it for you with W60 and ES60. W60, doesn’t sound too go in Low gain, so I switched to Medium, more clarity and less congestion in sound, I have to keep the volume 8. This is a touch of background “waterfall” hissing, then, I switched to iEMatch, can raise the volume to 40. The pair up is really good, very balanced, natural, detailed sound. Btw, I’m sure W60 v2. Now, with ES60, it sounds very close to W60 v2, but straight from DTR1 there is a lot more hissing, so need to use iEMatch. With iEMatch, ES60 pair up is even better than W60 v2. More transparency, better dynamics. Really like this one! But either one pair ups great with DTR1, but you will need iEMatch here.

      Like

      Reply

    1. it will depend on pair up synergy with different earphones and headphones. Plus, keep in mind, Micro has a built in iematch while in some cases you will have to use a separate iematch with DTR1. But in general, DTR1 sound is more transparent, more layered, while Micro is smoother, more natural.

      Like

      Reply

  9. Hi and thanks for this comprehensive review! How would this pair with Noble Kaiser 10U from Drop? From reading your reviews here the DTR1 seems good, the DX160, and maybe the Hiby R5. I am more audiophile oriented, would like to have my music library mobile, love to have a more reference source either alone or as transport for a mojo, to be inspired! – for Canjam visits, travel, car, bedroom source with Kef LS50/Melody Onix tube integrated. Also have ZMF Auteur Blackwoods, shure se 530. I do love hearing deeply in to the music if possible. I chose the Blackwoods as they are smooth, with very good detail, and sound very natural to me. I appreciate that less grain and good detail can mutually exist 🙂 I run an ebay face melter pure silver cable on the blackwoods paired with a Valhalla 2 – sweet.

    Like

    Reply

      1. If this is your first dap and considering some of your sensitive iems, R5 will be a better choice. Dtr1 will hiss with iems and has a lot of limitations for only dap to have

        Like

  10. Thanks for your quick and thoughtful reply!
    Yes, it’s my first dap 🙂
    What puts the R5 ahead of the DX160 in this case?
    So interesting, at the moment the R5 is the only one that would make it for me before xmas, hissless, as IEMatch 3.5 mm not available till jan 4th 🙂 You have an excellent crystal ball, it seems! Though “holographic” is etched in my brain!

    Like

    Reply

    1. Both R5 and DX160 are good, but R5 has a faster processor and Google Play already pre-loaded, so you can download streaming apps; also R5 has a better bluetooth performance. But honestly, can’t go wrong with either one since they both sound great. Just with functionality, R5 has an edge due to features mentioned above.

      Like

      Reply

  11. Hi Alex,

    Thanks for the review, I really enjoyed it. I have a question for you, actually, it is more like your opinion. I recently bought Tin Audio P1s (Planar IEM), and I am considering to upgrade my DAP (AK Jr.). I just have two options, what would you think to be a better match for Tin P2s? Dethonray DTR1 or Questyle QP2R.

    Thank you in advance

    Like

    Reply

    1. tbh, I have zero experience with Questyle DAPs, but from my understanding these two could be on the same level due to their current driving capability. Not familiar with P1 either, but if it’s a typical planar magnetic driver, even scaled down to IEM level, those usually benefit from higher current. Again, I can’t comment since I’m not familiar with either QP2R or P1s. Sorry, bud.

      Like

      Reply

    1. Great pair up, running it in mid gain, very dynamic punchy sound. Once you find the right pair of eartips, Cupids are golden. But eartips selection can either make it or break it.

      Like

      Reply

  14. how about dethonray dtr1 pair with tanchjim oxygen ? can get hiss ? and how about synergy when pair dethonray dtr1 and tanchjim oxygen?

    Like

    Reply

  15. Greetings! Between DTR1 and Plenue 2 Mk2 (It’s $800 on Amazon now!!), which would you prefer in terms of just sound quality?

    I’m currently using the Plenue D2 as my main DAP and I was thinking of getting an upgrade. I mainly use IEM (DTR1 will probably hiss with my Acoustune HS1695ti) since it is quite sensitive but regardless of that~ which do you think is “better”?

    P.S. Happy New Year to you!

    Like

    Reply

    1. Gotta be honest with you, I haven’t used either one in a long time, both need to be charged and I have to find dtr1 charger, it uses proprietary connector. By memory, they both sound good, dtr1 being brighter while Plenue being smoother and relatively warmer so will depend on pair up synergy. For iems P2 is better, for headphones dtr1 is better. Or if you are using single DD iems, dtr1 works great as well. In my opinion, if this is your only dap, get P2. If you are getting it as a secondary dap for variety, go for dtr1.

      Like

      Reply

  17. Thank you very much for your recommendation and for taking your time to answer my question 😀 Aight then I’ll save up for the P2 or maybe if some other new ones comes out. I really love Plenue series since I started using the D2.

    Like

    Reply

  18. Excellent review!Which cable do you use with your beyerdynamics T5p (on the picture)?Very good match with these headphone,i’m agree.The prelude pairs also very well with the 64 audio Nio (with M15 and Mx modulkes)

    Like

    Reply

    2. I switched off my DTR-1 for quite a while, when I wanted to listen to it again after having recharging it, It did not switched on again, DEAD…
      So every one who owns one should take care of this.

      Like

      Reply

      1. Contact Anson, the developer of Dethonray, he will help you out. I think the same happened to me before and it start working again. Just forgot what I had to do, was a long time ago.

        Like
