DAP Review

Astell & Kern A&futura A&K SE180

180-degree turn!

PROS: choice between different tonalities, solid build, modular design, hi-res 5” display, modules (SEM1/SEM2) with 2.5mm/3.5mm/4.4mm outputs, MQA support, aptX and LDAC Bluetooth (both Tx and Rx).

CONS: battery life, cost of additional modules.

The product was loaned to me for the review purpose in exchange for my honest opinion.

Manufacturer website: Astell & Kern, Available for sale directly or from on-line retailers like Bloom Audio.

Intro.

Looks like I can’t use “when hell freezes over” anymore when talking about Astell & Kern DAPs.  In October of last year, they finally introduced 4.4mm BAL output, in addition to Wireless LDAC protocol, in an all-new KANN Alpha DAP.  And if you thought it was just a fluke or one-time thing, here comes the latest A&futura series SE180 modular DAP release with LDAC and 4.4mm BAL, along with 2.5mm and 3.5mm, on stock SEM1 and optional SEM2 modules.

SE180 announcement caught everyone by surprise, and not only because of LDAC and 4.4mm BAL output, but also a modular DAC/amp design and a reduced price.  While A&K didn’t exactly reinvent the wheel here with a modular dac/amp design, they improved it and set a high bar to even challenge their current flagship.  Years ago, DAP competition was less fierce.  Today is a different story with a highly competitive market, and A&K responded with a highly competitive product release.

I received SE180 as a loaner for 2 weeks because this is the first and the only demo unit available in US now, and I appreciate the opportunity to test it.  I didn’t have time for a lot of my usual pair up and comparison examples, but I still tried to cover as much as I can to paint a detailed picture of this new A&K DAP from A&futura series.  So, let’s take a closer look at what I found.

Unboxing and Accessories.

I received SE180 without a packaging box, just the chassis and SEM1 and SEM2 modules, so there is nothing to write about the unboxing experience or accessories.  I’m sure packaging will be similar to SE200 or other entry and mid-fi level A&K DAPs, probably including a manual, a few sets of screen protectors, and a premium quality charging/data usb-c cable.  I don’t expect leather case to be included since I don’t recall seeing SE200 unboxing with a leather case.  Would love to be proven wrong, but SE180 is cheaper than SE200 and I expect it to follow the same footsteps.

Design.

I think many audiophiles are well aware that A&K pays as much attention to the sound tuning as they do to chassis design of DAPs.  All of their players have a unique signature look and solid build, and sometimes you don’t even feel like hiding it inside of a leather case.  To me, their flagship A&ultima SP2000 has a more formal classy look, while their “entry” level SR25 A&norma pushes the envelope with a funky tilted screen and slightly tilted sides design.  SE200 also has a unique tilt of the chassis when you look at the side profile and a sculptured wavy line around the volume wheel.

SE180 picked up a lot of cues from SE200 design.  The same size screen (5”) and overall dimensions are close, 77×137.2×19.9mm, just a little taller and thicker due to a modular design which contributes to 380g of weight (100g more than SE200).  SE180 also features tilted chassis sides and a little less pronounced wavy line around its LED volume wheel with multi-function light that lit up with red (16bit), green (24bit), blue (32bit), and purple (DSD) which can also be disabled.  The wheel itself has a signature A&K watch crown design with a precise click action control as you turn the volume up/down using your thumb.  But what I found atypical here is a single playback physical button with functionality of single click to play/pause, double click to skip forward, and triple click to skip back.

You no longer going to find 3 separate buttons on the opposite side from the volume wheel, and you also going to lose being able to fast-forward/back by holding separate skip buttons.  It took me a minute to get used to this new multi-control button, typical control of wireless headsets.  Afterwards, I found it quite intuitive and convenient since I was able to control the volume and the playback using my thumb due to their close proximity to each other.  The only thing I was missing is pushing the volume wheel to turn display on/off.  For that you have to reach to a power button located at the top of the DAP.  I’m so used to SP2000, that I continued to push the volume wheel on SE180.

With volume wheel and playback multi-function button on the right side, the left side is empty.  At the bottom of the DAP, you have usb-c multi-function port used for charging, file transfer, USB DAC in connection, and USB Audio out connection.  Next to it is the spring-loaded micro-SD card slot to expand the internal storage.  The top of the DAP is where you will find a new major element of SE180 modular design – that is where the actual module goes in.  And at the top left and right corners of the chassis sides you will find small release buttons you have to push in to release the DAC/amp module.  Unlike other modular designs with 2 screws holding the module down, here you don’t need any tools.

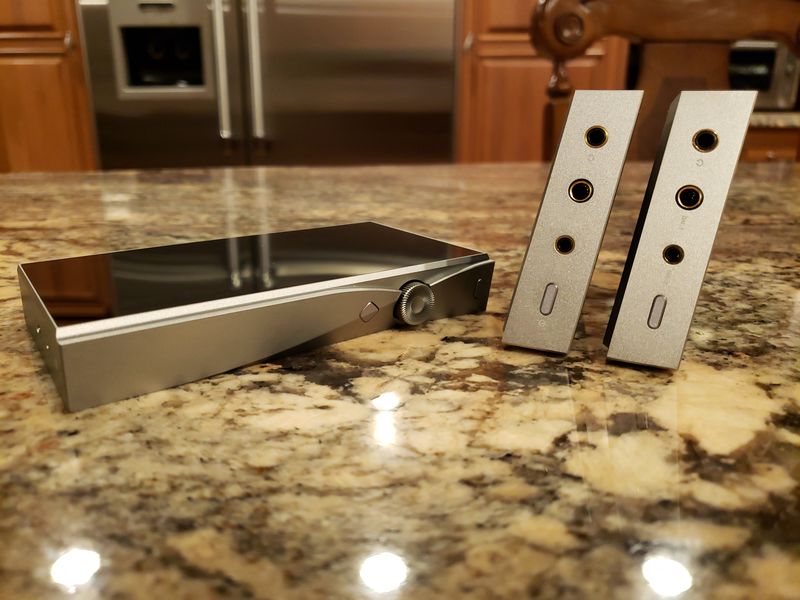

I will go into more details about the modules in the next section, but do want to mention that stock SEP1 module and optional SEP2 have the same look and the same ports, featuring single ended 3.5mm and balanced 2.5mm and 4.4mm headphone/LO outputs.  Each module also has a power button used to turn the display on/off as well as power down/up the DAP.  One thing to keep in mind, SEP modules are not hot-swappable.  Once you remove a module, SE180 will power down and you will have to turn it back on after inserting a new module.

Under the hood.

As one can imagine, the first thing that stands out from under the hood is the modular design and 2 removable interchangeable modules.  While SE200 had multi-DAC design, SE180 modular design allows you to completely remove and replace a card with another DAC/amp combo.

The default SEM1 module has ES9038Pro DAC and comes with 3.5mm SE (1ohm output impedance) and 2.5mm/4.4mm BAL (1.5ohm output impedance) outputs that can function as either Phone Out or Line Out.  In addition to providing access to digital filters of corresponding DAC, for the first time I also see access to change the gain, either Normal (SE 2Vrm, BAL 4Vrms) or High (SE 3Vrms, BAL 6Vrms) which going to be useful for IEMs with higher sensitivity.

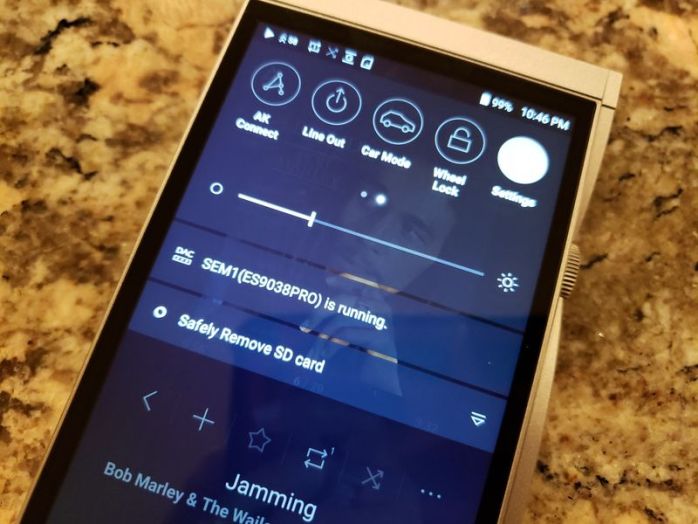

ak_se180-16

The optional SEM2 module will come with dual AK4497EQ DAC, and also has 3.5mm SE (1ohm output impedance) and 2.5mm/4.4mm BAL (1.5ohm output impedance) outputs that can function as either Phone Out or Line Out.  Similar to SEM1, you have access to digital filters of corresponding DAC and access to change the gain, either Normal (SE 2Vrm, BAL 4Vrms) or High (SE 3Vrms, BAL 6Vrms) which going to be useful for IEMs with higher sensitivity.

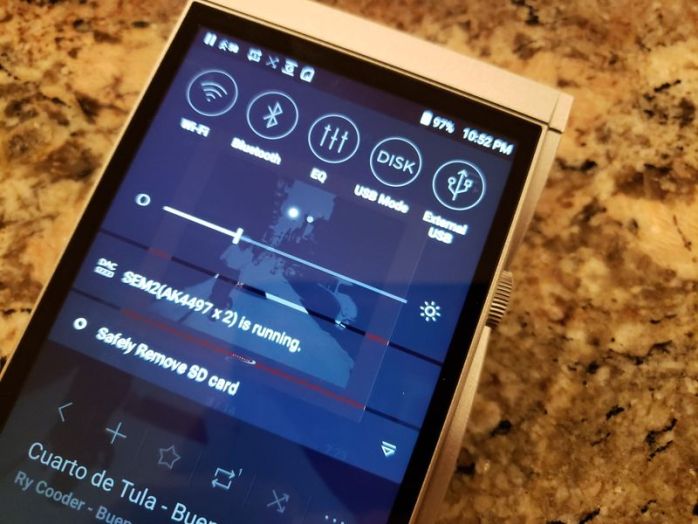

ak_se180-23

It is not coincidental that A&K selected ESS module to be default since audio market is still recovering after AKM factory fire and experiencing AKM DAC shortage.  Based on what I heard, while SE180 with SEM1 should be shipping soon, availability of SEM2 module is delayed until July.

Both modules yield about 10hrs of playback time on 3,800mAH LiPo battery.  I didn’t have enough time to test battery endurance under different conditions, but from my experience of testing other A&K DAPs, this number usually holds true using average sensitivity IEMs from balanced output while playing FLAC files in the loop with display mostly off.  This battery life is no different than SE200 using AKM output.  Another thing to keep in mind, while both DACs support all the popular formats, such as WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA, SEP1 w/ESS goes up to DSD256 while SEP2 w/AKM goes up to DSD512.

The rest of the features are common, such as internal 256GB and storage expansion with microSD (Max 1TB).  The touch display in SE180 is 5” like in SE200, but the resolution went up from 1280×720 to an impressive 1920×1080.  You will also find a support of BT5.0 Wireless standard that includes both aptX HD and LDAC (while SE200 had BT4.2 and only aptX HD).  Plus, now BT supports both Tx and Rx.  Unfortunately, there is only 2.4GHz Wifi band, wish they would implement a dual with 5GHz to improve the connectivity.  Still OpenApp support to load a number of popular streaming apps, but the Android OS is closed and if I’m not mistaken, based on Android 9.0 with additional sound optimizations.

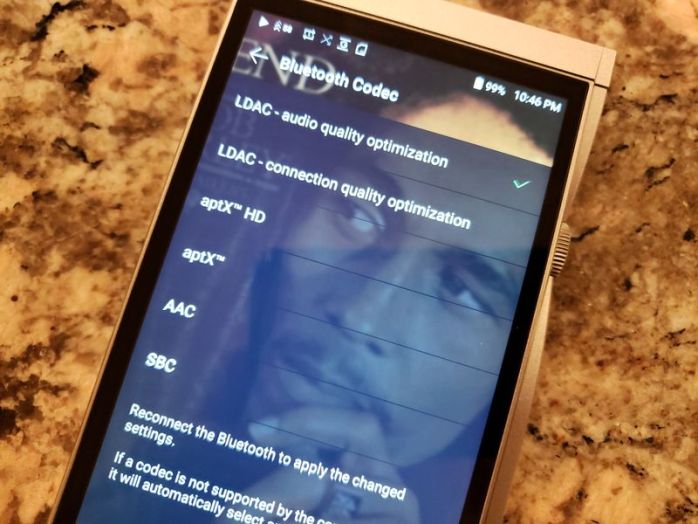

ak_se180-17

Page 2 – GUI overview, and Open APP Service.
Page 3 – Sound Analysis, Comparison, Pair up, Connections, and Conclusion.

Pages: Page 1, Page 2, Page 3

23 thoughts on “Astell & Kern A&futura A&K SE180”

  1. I also auditioned both cards and I suggest you review the SE180ESS vs SE180AKM paragraph ad most od my impressions were exactly opposite. Of course it may be just me and my ears and you have all right to hear it differrently but please review. Perhaps ESS and AKM words were swapped as a part od technical post-editing?

    Like

    Reply

    1. No, I still hear it that way. It is not a night and day difference. And per your suggestion, I just went back to hear and to compare it again. And I edited my sound impressions paragraphs to make it more clear that it will depend on pair up synergy with your iems/headphones. I don’t want people to think they will get 2 totally different sounding DAPs with 2 cards. It’s a subtle refinement. Just curious, where/when did you audition SE180 with both cards? How many hours of burn in did it have? Were they final or pre production? SE180 only going on sale right now and SEM2 won’t be even available for sale until mid July.

      Liked by 1 person

      Reply

      1. Hi. How does a near flagship portable dap like SE180 compare purely sonically with something like an entry level desktop dac like Topping E30, Modi 3, etc? I mean if only their ‘dac’ capabilities are compared then how does an entry level desktop dac (with their big internal capacitors) compare with a near flagship or very expensive portable dap such as SE180?

        Like

      2. Not familiar with any desktop equipment. And, dac will need an amp to make the final judgment of a desktop stack against dap like SE180, and based on your question to compare desktop dac to LO output of SE180 using the same external amp. Otherwise, it will be just a misleading speculation. Also, you are right, desktop dac will have juicy power filtering caps, while dap is limited to smaller “battery” filtering caps.

        Like

    2. btw, I was talking to a few people about SE200, and heard it created a polarizing opinion as well, with people arguing about hearing the opposite too 🙂 Also, in addition to burn in, there could be difference due to filter selection, as one of the contributing factors. I kept everything on default.

      Like

      Reply

  2. Ok. I fully respect and your review and opinion. Just wanted to make sure.
    I listened to pre-prod batch in Krakow, Poland on May 14th. In terms of burn-in this piece was already in another city as a part of a demo tour so the burn-in could be perhaps 100h? To my ears AKM had more coloring and ESS was a bit darker / more black-and white. ESS card sound was tighter, faster, with a blacker background and faster transient of notes. AKM was is more relaxed, laidback, smoother. I listened using Ether C Flow planars with balanced 2.5 TRRS cable. I set filter to “super slow” to get more clarity. I think the gain setting was “low”.

    Liked by 1 person

    Reply

    1. Perhaps, that was part of a pair up synergy. With Empyrean planars, I liked se180akm even better than sp2k and better than se180ess. But either way, nothing is set in stone, we hear how we hear, and the reason why i always suggest to make the final decision after auditioning with your favorite earphones/headphones and playing your favorite test tracks.

      Liked by 1 person

      Reply

  3. Technically, is it a significant SQ upgrade to SR25?

    Adding 4.4mm bal is really tempting, but I love my SR25 due to its small size and long battery life

    Like

    Reply

    1. Tbh, nothing is a significant upgrade. Is SP2000 5x better than SR25? Absolutely not! Just like SE180 is not 2x better than SR25. SE180 is an upgrade from SR25, and you will hear technical improvements, but it will depend on earphones/headphones you are using and their synergy with either sources, or the type of music, or just your personal ability to hear a significant vs subtle difference in sound/performance. I have people who are arguing with me their iPhone sounds as good or better than SP2000.. That is how they hear it 😉

      Like

      Reply

      1. “I have people who are arguing with me their iPhone sounds as good or better than SP2000”

        LOL

        Thanks the detailed SE180 review , enjoy it a lot and happy to know its background hissing is small for sensitive IEM like solaris , i think this is important for some ppl like me

        I’ve tried both ESS and AKM module (retailed veriosn) , i do think ESS one sound more crispy , with more sparkle in treble , a colder sound compare with the AKM , AKM vocal sound warmer , bring closer to audience and the soundstage is smaller than ESS , an obvious different , could say sea and sky difference personally when pair up with solaris and legend X SE, haha

        I do agree it’s a pair up syergy , ESS with more dynamic , quantity and impact of bass too

        I enjoy this DAP , another one is the N6ii Titanium R2R version , what a bass monster ! SE180 bring out fine and detailed sound with sufficient Bass (ESS) , N6ii Ti bring out lots of emotion and thunder bass , but with rather heavy hssing sound with using high sensentive IEM

        Looking forward reviews on other new products from you 🙂

        Like

  4. Hi!!

    How is SEM2 sound with a more neutral IEM like the U18t?
    It’s similar to the sound of SP1000 (or SP2000 if you don’t keep SP1000 with you)?
    It is really tempting to have an SP1000 DAP in a module like this

    Like

    Reply

    1. SE180 was on loan, so I didn’t get a chance to compare it with SPK, but by memory akm sem2 card will come close. A&K is aggressive with this release to recapture the market, it is really good. .

      Like

      Reply

  5. Hi,
    I just discovered this blog and wow it’s great! Well done!
    I’d like to ask for some help since I hadn’t read about the DAP’s for a long time, and now I’m a bit “out of date” with what’s going on.
    My Plenue 1 is getting old and the display is nearly dead 😦
    So I’m looking for something new, with an upgrad of course!
    I’m looking for a new one in the upper range, like SE200 or SE180, Cayin N6ii, or maybe Plenue L, or something else like Fiio or iBasso, but really I’m a bit lost with all that stuff…
    I read plenty of reviews, it doesn’t always help.
    Could you give me some advice?
    I’m looking forward to your answer, thx 🙂

    Like

    Reply

    1. Most of the latest daps will be an upgrade to original P1, unless you still prefer its warm tonality. PL and N6ii are rather old platforms, SE200 is getting dated. SE180 modular design is excellent, highly recommend it, plus it’s a great value relative to other A&K daps. And if you want a warmer tonality, Shanling M8

      Liked by 1 person

      Reply

      1. Thank you for the advice.
        In my mind I was going on the SE180, the modular design seems very interesting. The warm tonality is also a important point… I’ll let myself some days of reflection, but trying an A&K attracts me since a long time.

        Like

  6. Hi, excellent review, thank you. I have a SR25 and bought a Shanling M8; I loved it’s sound with my Vision Ears VE-8 and Effect Audio Janus D. The M8 had some battery issue; I gave it back and got the refund since I could not get a replacement. Very sad. The M9 will come but… I do not know. It looks like a transition model. What do you think about the SE180 for my iems? Or the Hiby R8? Thank you for your advice. BR. Carlo

    Like

    Reply

    1. Both SE180 and R8 are good DAPs. SE180 gives you flexibility to replace dac/amp, though you do have a limited app access since it’s not a fully open android environment. R8 is super fast and sounds great. But, I would also wait for upcoming Hiby’s RS6, more info should be available soon. Otherwise, SE180 is pretty good, especially for iems.

      Like

      Reply

  7. Should I go for SEM2 to get the best in terms of soudstage from VE-8? I do not like a very bright sound. That’s why I was adviced by Effect Audio to add a Janus D. Thanks for your advice, since I have a limited experience in DAP and pairing.

    Like

    Reply

    1. Yes, I would get SEM2 and hurry up cause AKM dacs were discontinued (4493, 4495, 4497, 4499) and I have a feeling they probably have a limited stock before they run out of components.

      Like

      Reply
